PU layflat hose

2D download:

PU layflat hose

Ordering Code

*High pressure 10-15bar for big sizes 2" to 12"
*Oil and gas industry with large delivery
*Four time of Abrasion resistance than PVC layflat hose.
*woven polyester or polyamide reinforcement.
*Long service length available on 200m/roll.

PU Layflat Hose (TPU Flat Hose) for oil & water Discharge & Mining

Chanle PU/TPU layflat hose is a heavy-duty flat hose designed for harsh working conditions. Made of premium ether-based TPU material and reinforced with high-tensile polyester yarn, this flat hose features flat surface, excellent flexibility and outstanding abrasion resistance. It is available in black and red colors, widely used for sand discharge, mining drainage, oilfield fluid delivery, farm irrigation, fire fighting and municipal engineering.

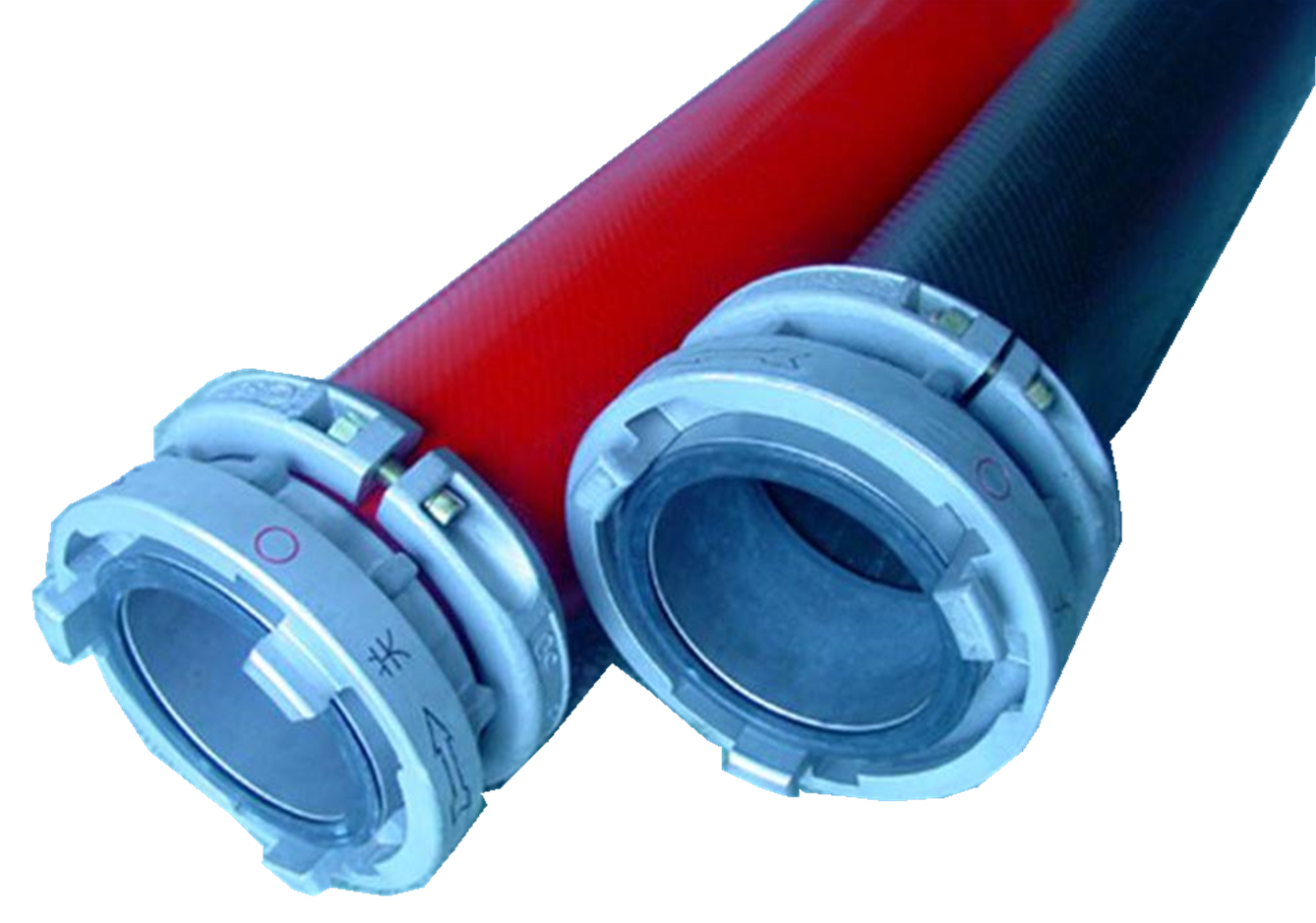

Black red PU TPU layflat hose with flat surface for industrial use

Key Features

Flat surface design, easy to roll up, store and transport
4 times higher abrasion resistance than traditional PVC layflat hose
High working pressure, stable performance for long-distance delivery
UV, weather, oil and low temperature resistant for outdoor use
Integrated extrusion structure, no delamination and water leakage
Multiple colors optional: black, red, blue and customized colors
Custom diameter, length and logo printing are supported

Reinforced TPU flat hose for sand and slurry discharge

Technical Specifications

We supply complete sizes of PU layflat hose from 2 inch to 14 inch. Standard roll length is 50m, 100m and 200m. Working pressure ranges from 8 bar to 16 bar to meet different project demands.

Code	规格Sizes	内径ID	压力W.P.	爆破压力 B.P.	重量 Weight
Code	Inch	mm	Bar	Bar	KG/M
LFU210	2	25	10	30	0.55
LFU216	2	25	16	48	0.65
LFU6510	2.5	50	10	30	0.65
LFU6516	2.5	50	16	48	0.95
LFU7510	3	75	10	30	0.8
LFU7516	3	75	16	48	1.25
LFU10010	4	100	10	30	1.2
LFU10016	4	100	16	48	1.45
LFU12510	5	125	10	30	1.55
LFU12516	5	125	16	48	2.2
LFU15010	6	150	10	30	1.8
LFU15013	6	150	16	48	2.5
LFU20010	8	200	10	30	3.2
LFU20013	8	200	13	39	3.8
LFU25010	10	250	10	30	4.2
LFU25013	10	250	13	39	4.8
LFU30010	12	300	10	30	5.2
LFU30010	14	350	8	24	6.2

Wide Applications

Our flat PU hose fits multiple industrial scenarios. It is the ideal choice for sand and slurry discharge, mine drainage, oilfield water and oil transportation. It also works perfectly for agricultural irrigation, fire emergency water delivery, construction drainage and municipal sewage treatment.

PU layflat hose for oilfield, agriculture, fire fighting and sand discharge

PU VS PVC Layflat Hose

Compared with common PVC hose, PU/TPU layflat hose owns better wear resistance, longer service life and stronger low temperature resistance. It is more suitable for heavy load and long-term outdoor operation.

FAQ

Q: What colors do you provide for PU layflat hose?
A: Standard colors are black and red, customized colors are acceptable.

Q: Can it be used for sand and slurry pumping?
A: Yes, the flat hose is specially designed for sand discharge and slurry delivery.

Q: Do you support OEM and custom size?
A: We provide full OEM service, including size, length, color and logo customization.

Q: What is the maximum working pressure?
A: The max working pressure reaches 16 bar for regular models.
