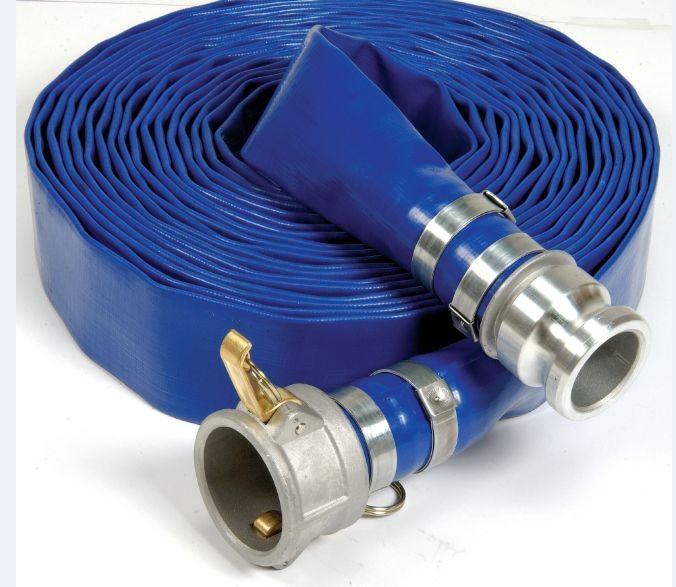

PVC Layflat Discharge Hose

2D download:

PVC Layflat Discharge Hose

Ordering Code

*High Pressure up to 11bar
*Size:3/4"-16"
*Made by 100% new material
*Long service life
*OEM service, Anti-UV, Anti-Low or High temperate, FDA Grade.

Our PVC layflat hose is reinforced with high tensile polyester yarn, offering excellent burst pressure and tear resistance. The smooth inner wall ensures fast water flow, while the outer layer is weather and corrosion resistant for long outdoor service life. Foldable and portable, it is an ideal solution for municipal engineering, wastewater discharge, pool drainage and farm irrigation systems.

Inner & Outer Cover:PVC

Reinforced: Polyester Yarns

Working Temperature: -10 - +60 degree

Application:
Agriculture irrigation, construction project, industrial and mining enterprise at high working pressure under low or medium temperature.

Economic Duty Layflat Hose
Sizes		Thick	Weight	W.P.	B.P.
Inch	mm	mm	g/m	bar	bar
1"	26	1.3	150	4	12
1-1/4"	33	1.2	170	4	12
1-1/2"	41	1.25	205	5	15
2"	53	1	230	4	12
2.5"	66	1.15	320	4	12
3"	78	1.1	360	4	12
4"	104	1.3	550	4	12
5"	128	1.35	750	4	12
6"	155	1.4	900	4	12
8"	202	2	1785	3	9
10"	250	2.65	2650	2.5	7.5
12"	302	2.55	3100	2	6
14”	322	4	5000	2	5
16”	400	4.8	6800	2	5
Medium Duty Layflat Hose
规格		厚度	Weight	W.P.	B.P.
Inch	mm	mm	g/m	bar	bar
3/4"	20	1.35	112	7	21
1"	26	1.4	165	7	21
1-1/4"	33	1.3	190	7	21
1-1/2"	41	1.3	230	7	21
2"	53	1.3	300	6	18
2.5"	66	1.7	430	7	21
3"	78	1.45	500	6	18
4"	104	2.3	865	6	18
5"	128	2.3	1080	6	18
6"	155	2.4	1600	6	18
8"	202	2.65	2020	4	12
Heavy Duty Layflat Hose
Sizes		Thick	Weight	W.P.	B.P.
Inch	mm	mm	g/m	bar	bar
3/4"	20	1.55	140	10.5	31.5
1"	26	1.7	200	10.5	31.5
1-1/4"	33	1.45	210	10.5	31.5
1-1/2"	41	1.9	290	10.5	31.5
1-3/4"	45	1.6	320	8	24
1-3/4"	45	2	350	10.5	31.5
2"	53	1.5	350	8	24
2"	53	2.05	420	10.5	31.5
2.5"	66	2.2	650	10.5	31.5
3"	78	2.5	850	10	30
4"	104	2.5	1000	9	27
5"	127	3.1	1800	8	24
6"	155	3.3	2000	8	24
8"	202	2.95	2200	5	15
8"	202	3.15	2800	6	18
