TPU tube

2D download:

TPU tube

Ordering Code

* 100% new material

* Fast worldwide delivery.

* Factory price

* OEM service-- brand, size, length

*Strict quality inspection

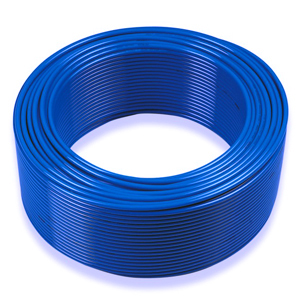

Chanlehose Premium PU pneumatic tube crafted from virgin TPU material. Featuring high flexibility, airtight performance and abrasion resistance.
Ideal for air compressors and industrial pneumatic automation systems.

PU tube Feature:

1. Operating Temperature –40℃～+80℃ (For Non-Chemical GAS Space)

2. Diameter Tolerances ±0.1mm～±0.15mm

3.Hardness :95A or 98A

4. Tensile Strength：400kgf/cm2, 5690 PSI

5. Elongation at Break: 490-590%

6. Abrasion :35mg

7. Tearing Strengh: 1565 PSI

8. Safety Factor 3:1

9. Min bending angle: 3*2-12℃ 4*2.5-12℃ 5*3-33℃ 6*4-35℃ 8*5-39℃ 8*5.5-46℃ 10*6.5-43.5℃ 10*7.5-42℃ 12*8-37℃ 12*9.5-54℃ 14*10-70℃ 16*12-70℃

10. Sizes: As request. 4x2.5, 6x4, 8x5, 10 x 6.5, 12 x 8, 16x12 or other
11.PU air tube Color: Clear, Red, Blue,Black,Yellow,Orange,Green,Gray,White, Transparent Red,Transparent Blue,Transparent Green,Transparent Yellow,Transparent Orange

Code	规格Size(mm)		Tolerances公差	长度Length(m)	最大工作压力W.P. MAX@ 23ºC	最小弯曲半径Min Bend Radii
Code	O.D外径	I.D内径	Tolerances公差	长度Length(m)	最大工作压力W.P. MAX@ 23ºC	最小弯曲半径Min Bend Radii
PU0302	3	2	±0.10	200	10	8
PU0425	4	2.5	±0.10	200	10	12
PU0503	5	3	±0.10	200	10	8
PU0604	6	4	±0.10	200	10	15
PU0805	8	5	±0.10	100	10	20
PU0855	8	5.5	±0.10	100	8	20
PU0806	8	6	±0.10	100	6	20
PU1065	10	6.5	±0.10	100	10	25
PU1075	10	7.5	±0.10	100	8	35
PU1208	12	8	±0.10	100	10	38
PU1295	12	9.5	±0.10	100	7	45
PU1410	14	10	±0.15	100	8	60
PU1612	16	12	±0.15	100	7	70
PU 3/16"	3/16"	0.118"	±0.10	200	10	10
PU 1/4"	1/4"	0.179"	±0.10	200	10	12
PU 3/8"	3/8"	1/4"	±0.10	100	10	25
PU 1/2"	1/2"	3/8"	±0.15	100	10	38
